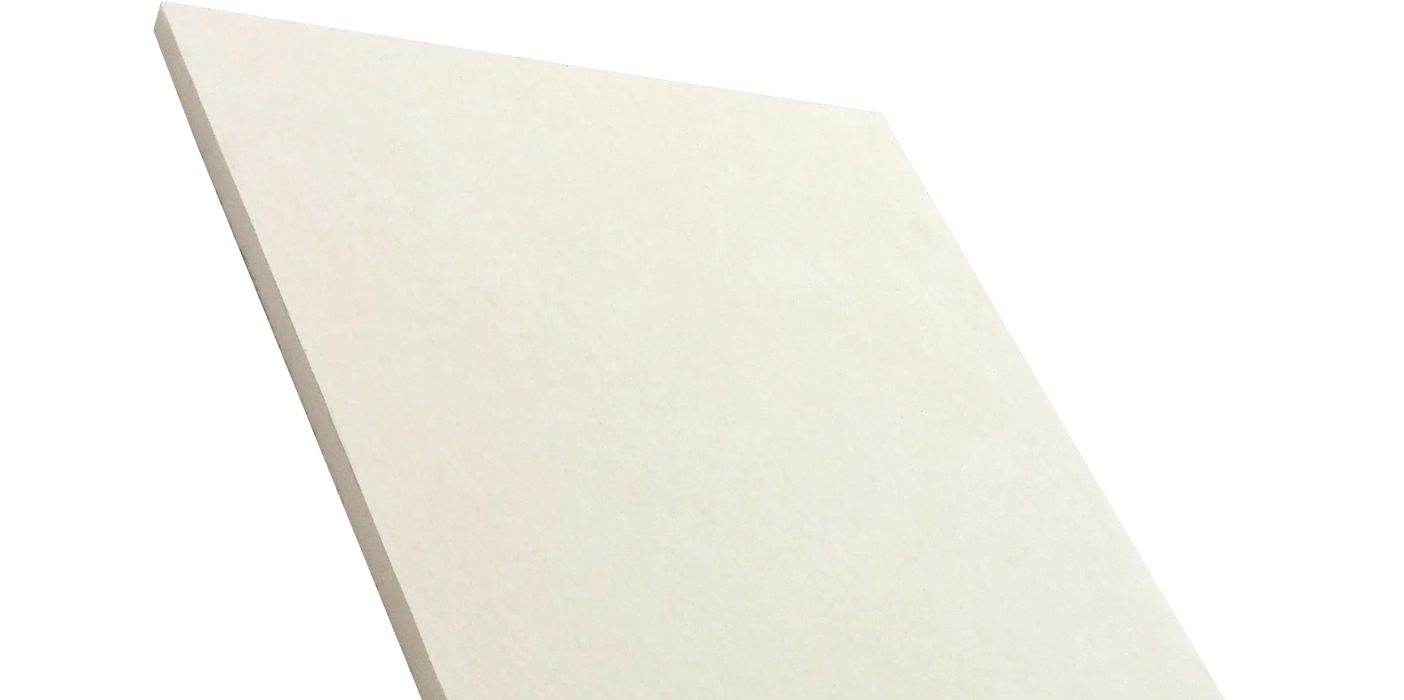

CEMBLOC CemPlate 9mm - A1 Non Combustible Fibre Cement Board - 2400 x 1200 x 9mm.

CEMBLOC CemPlate 9mm - A1 Non Combustible Fibre Cement Board - 2400 x 1200 x 9mm.

by Cembloc
SKU CEM6001
£34.78 GBP - £34.78 GBP
£34.78 GBP
£34.78 GBP - £34.78 GBP
£34.78 GBP

2400 x 1200 x 9mm
CemPlate is a fibre cement board specifically designed to provide high levels of protection against fire, moisture and weather. It’s resistant to moisture, UV stable, dimensionally stable and fire rated, non-combustible. All Cembloc fibre cement products are classified non-combustible according to EN 13501-1. A combination of which makes the perfect impact resistant carrier panel for an exterior grade rain-screen cladding system. Construction Board for Render & Fire Protection.

Please Note: These boards are heavy so you would require a means to offload ( either handball or Forklift ) them as they are too large for a tail lift.

Delivery time

93% of orders delivered in 3-5 business days!
Request a quote
Technical

Technical Specifications.

  • Reaction to fire - A1 non combustible (EN 13501-1:2019).
  • Water Impermeability - Pass - No formation of drops of water was found after being tested.
  • Thermal Conductivity - 0.216 W/mK.

Racking resistance.

  • Vertical load 0 k N Racking Stiffness (mean) 2278 N/mm | Fmax Average 19.52KN.
  • Vertical load 5 kN Racking Stiffness (mean) 1908 N/mm | Fmax Average 25.55KN.
  • Water Absorption - <29%.
  • Wet Expansion Rate - 0.19%.
  • Heating Shrinkage Rate – 0.18%.
  • Packaging - Palletised, strapped and wrapped.
  • Appearance - Light grey, slightly textured key surface.
  • Density - 1350 kg/m³ (± 50kg).
  • Fire Propagation - Class “0” (<2) (BS 476-Part 6).
  • Fire Resistance - Class 1 (BS 476-Part 7).
  • Maximum Tile Weight - Up to 105kg/m².

Racking resistance.

  • Vertical load 0 k N Racking Stiffness (mean) 2278 N/mm | Fmax Average 19.52KN.
  • Vertical load 5 kN Racking Stiffness (mean) 1908 N/mm | Fmax Average 25.55KN.

Characteristic pull out resistance per fixing.

Specimen comprised timber frame constructed from 90mm x 38mm x 2372mm C16 timber stud at nominal 600mm centres; Product fastened to timber frame with Cembloc 38mm fibre cement board screws at 150mm centres to the perimeter and 300mm centres to the internal studs.

  • JT3 D6H 1112 N
  • SW8 R 4.8 1002 N
  • TKR 4.8 815 N

Attributes

  • Protects sub-construction system.
  • Extremely high dimensional stability (<0.19%) when compared to chipboard, gypsum and cement particle boards.
  • Environment friendly.
  • Does not contain any harmful substances to health.
  • 100% Asbestos free.
  • A1 Fire Class (In accordance with EN 13501-1:2019).
  • Does not release toxic gas during a fire.
  • Resistant to moisture and water.
  • Resistant to the effects of sunlight.
  • Resistant to seasonal changes.
  • Easy assembly and modification procedures.
  • Easy to cut.
  • Very high impact resistance compared to that of gypsum based boards.
  • Extends and protects the life of insulation material when used in conjunction with thermal and sound insulation systems.

Data Sheet available upon request.

Coverage :

Units In Pack: 1

Volume:

Thickness :9 mm

Weight m/2 :35 kg

Width : 1200 mm

Length: 2400 mm
